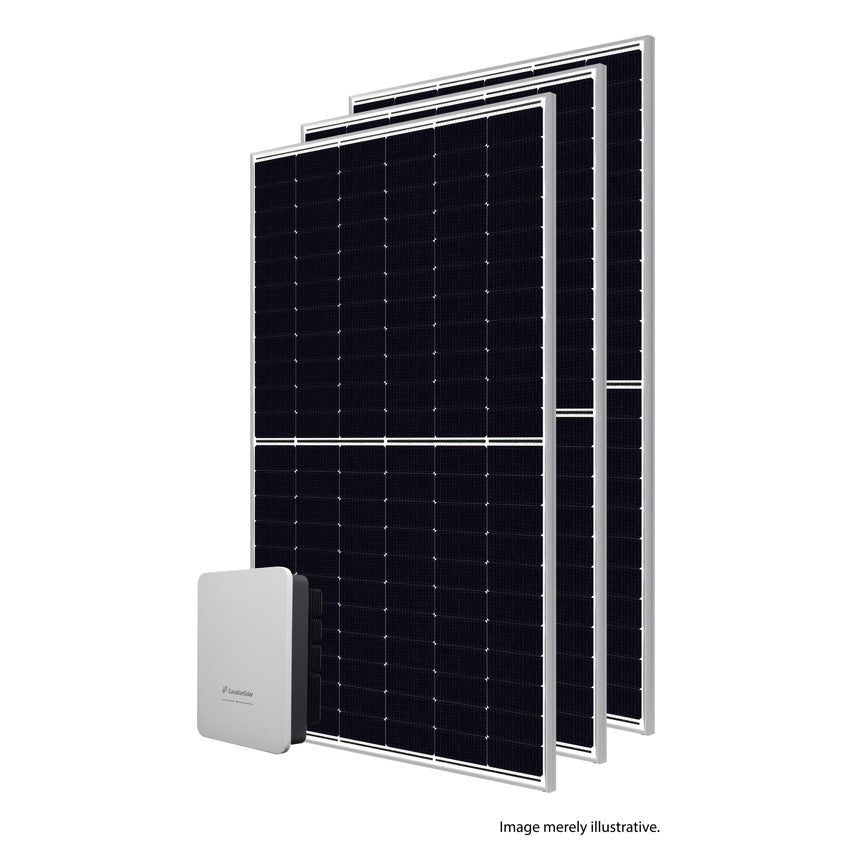

Canadian Solar Energy Bundle (CSI-THREE-PHASE STRING INVERTER 20 kW + 36 modules TOP(Bi)HiKu6 6.2-66TB 610 Watt)

*The price includes delivery costs within Poland. (DDP, net price excluding VAT)

*Displayed prices refer to the single unit

-----------------------------------------------------------------------------

Set of :

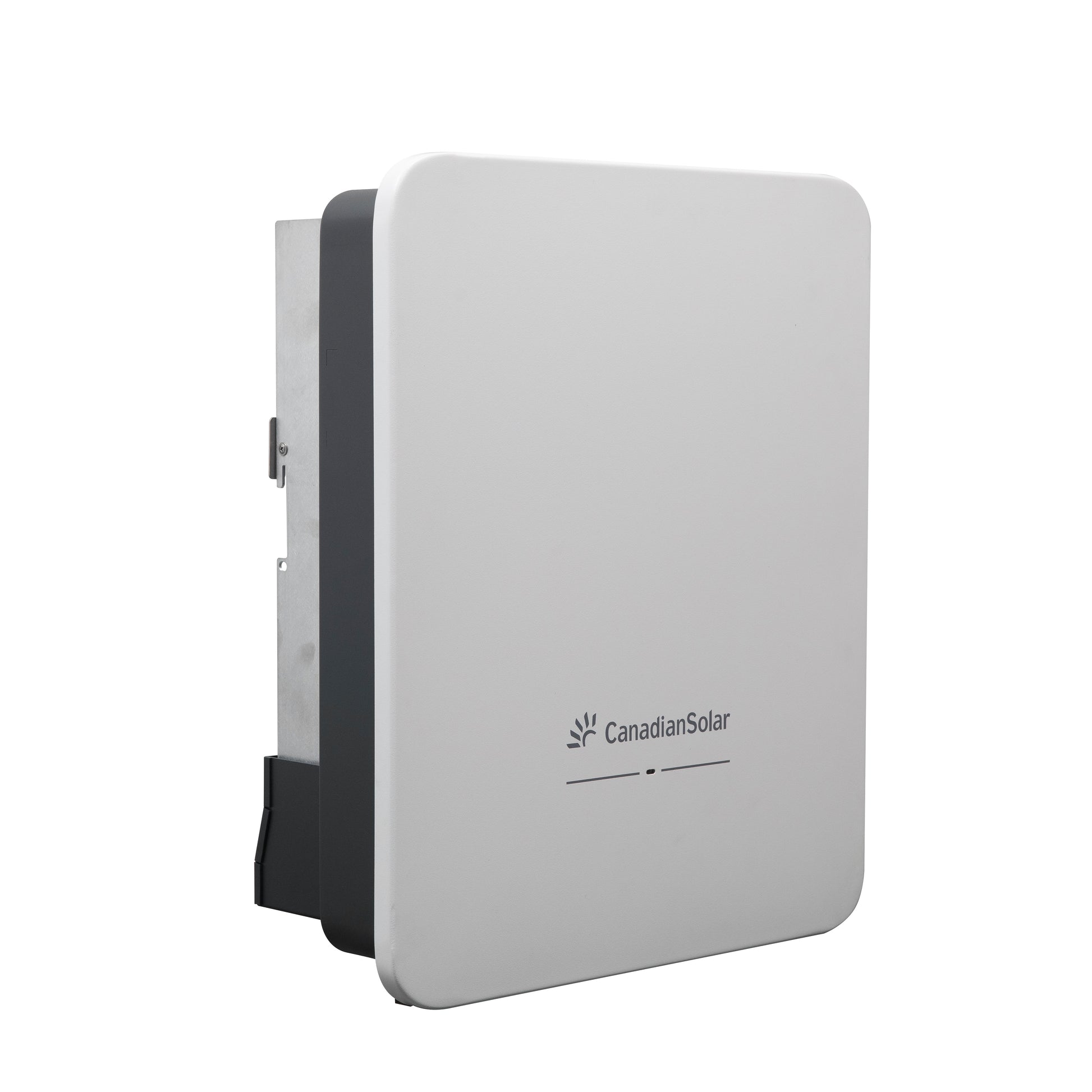

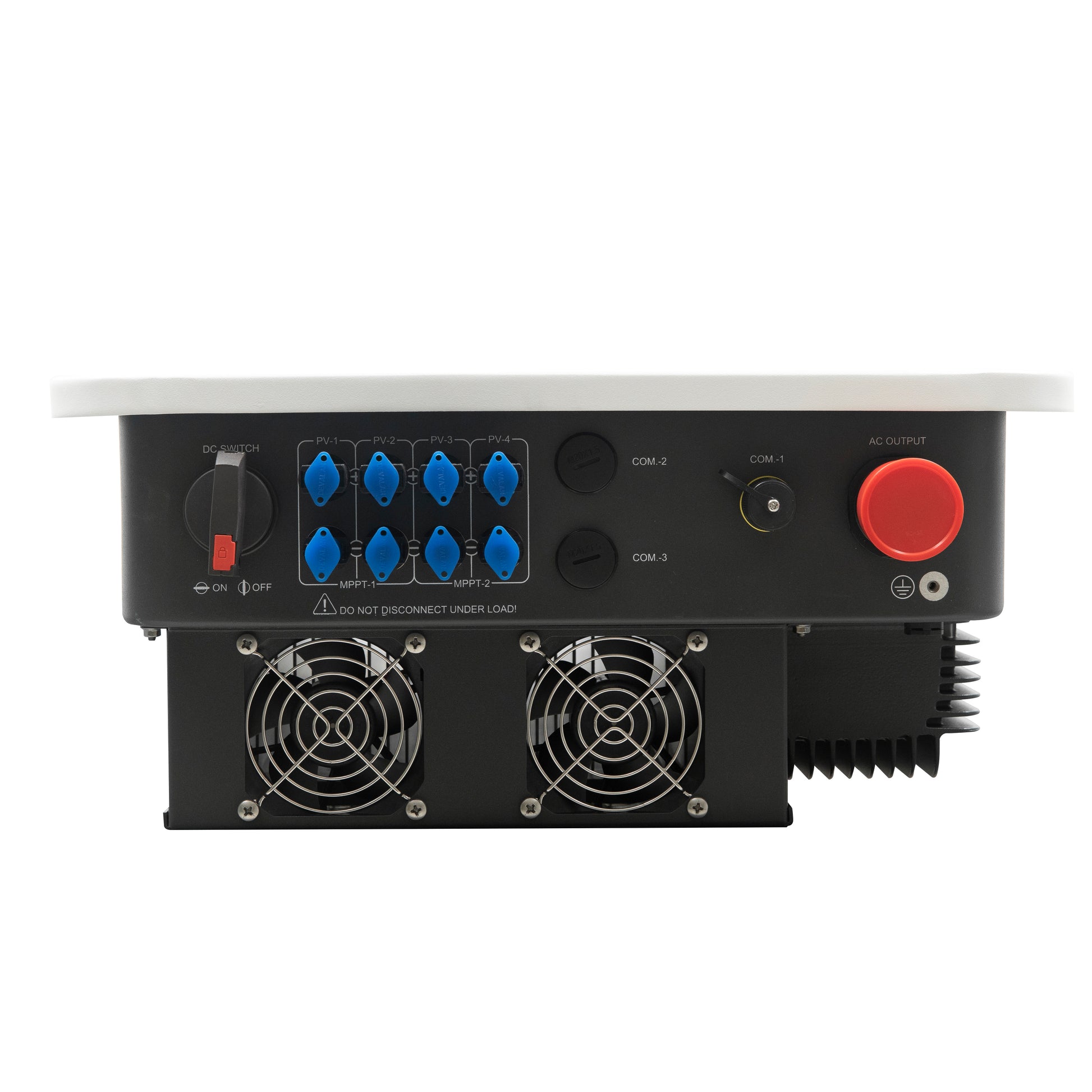

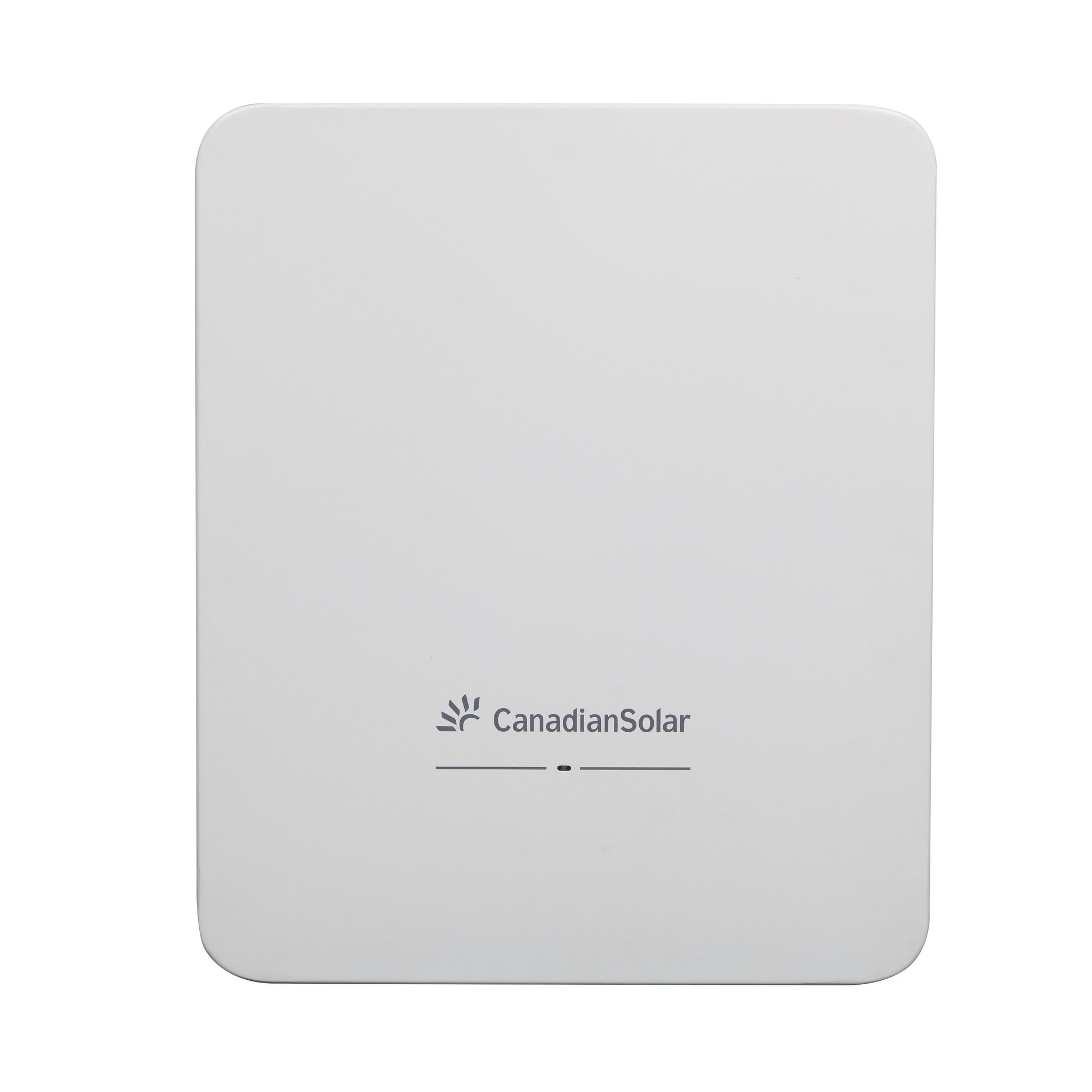

- CSI-THREE-PHASE STRING INVERTER 20 kW:

AC output:20 kW, three-phase 400 VAC
Max efficiency: 98.6 %
MPPTs: 2 MPPTs (Max. Input Current: 32A; Operating Voltage Range: 160-1000V), 2 Strings per MPPT
Protection: AFCI, DC reverse polarity, DC SPD Type II / AC SPD Type II
Communication: RS485, WiFi
DC/AC oversizing factor: 1.5
Intelligent forced air cooling
Real-time monitoring with Canadian Solar Smart Energy Platform
IP66, 625x520x278 mm, 19kg
Warranty: 10 years

*Displayed prices include the recycling obligation of 0,9 zloty/Wp

Additional documents:

Datasheet (EN)

Installation manual (EN)

Installation manual (PL)

Warranty (EN)

Warranty (PL)

Certificates

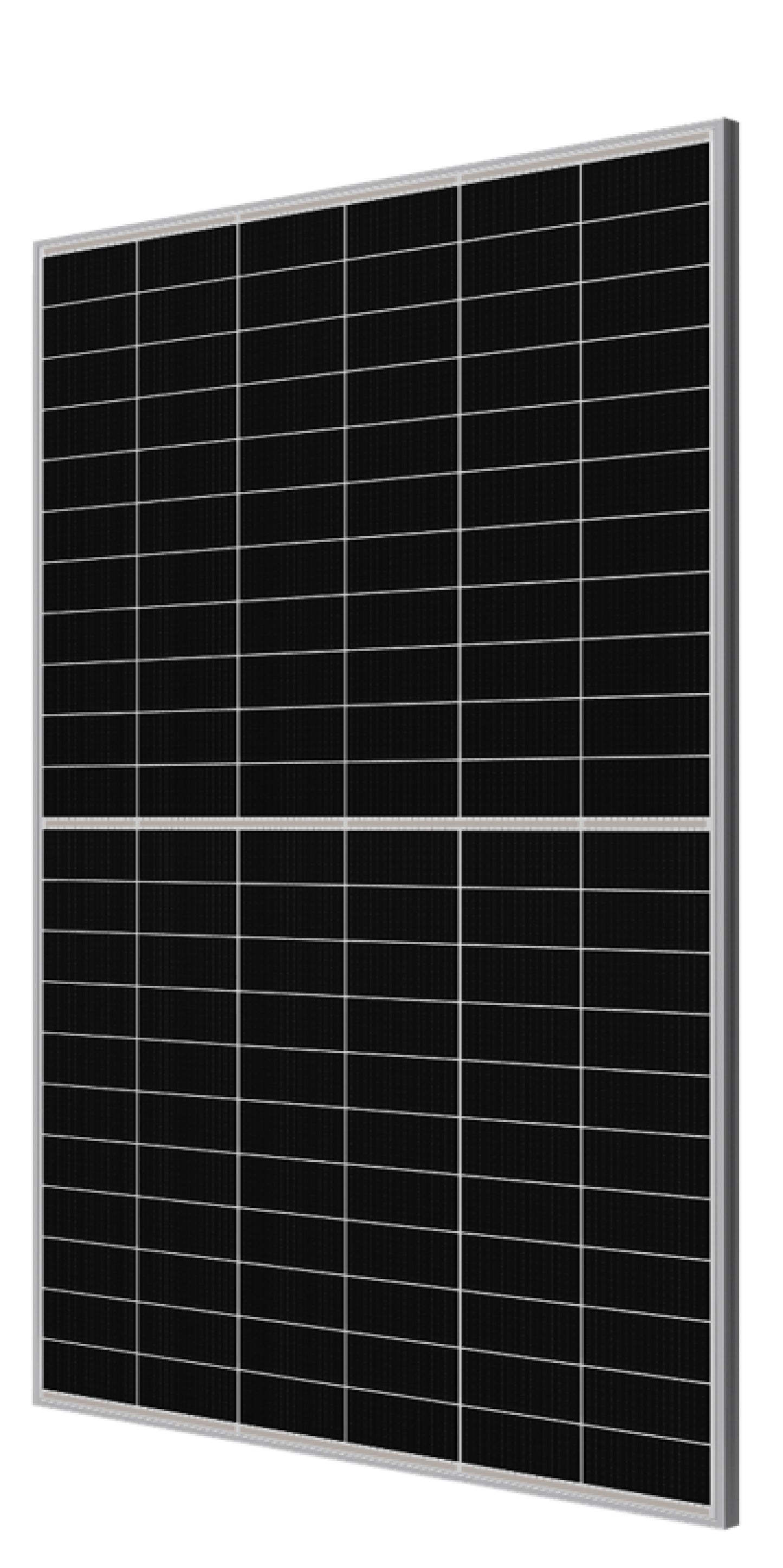

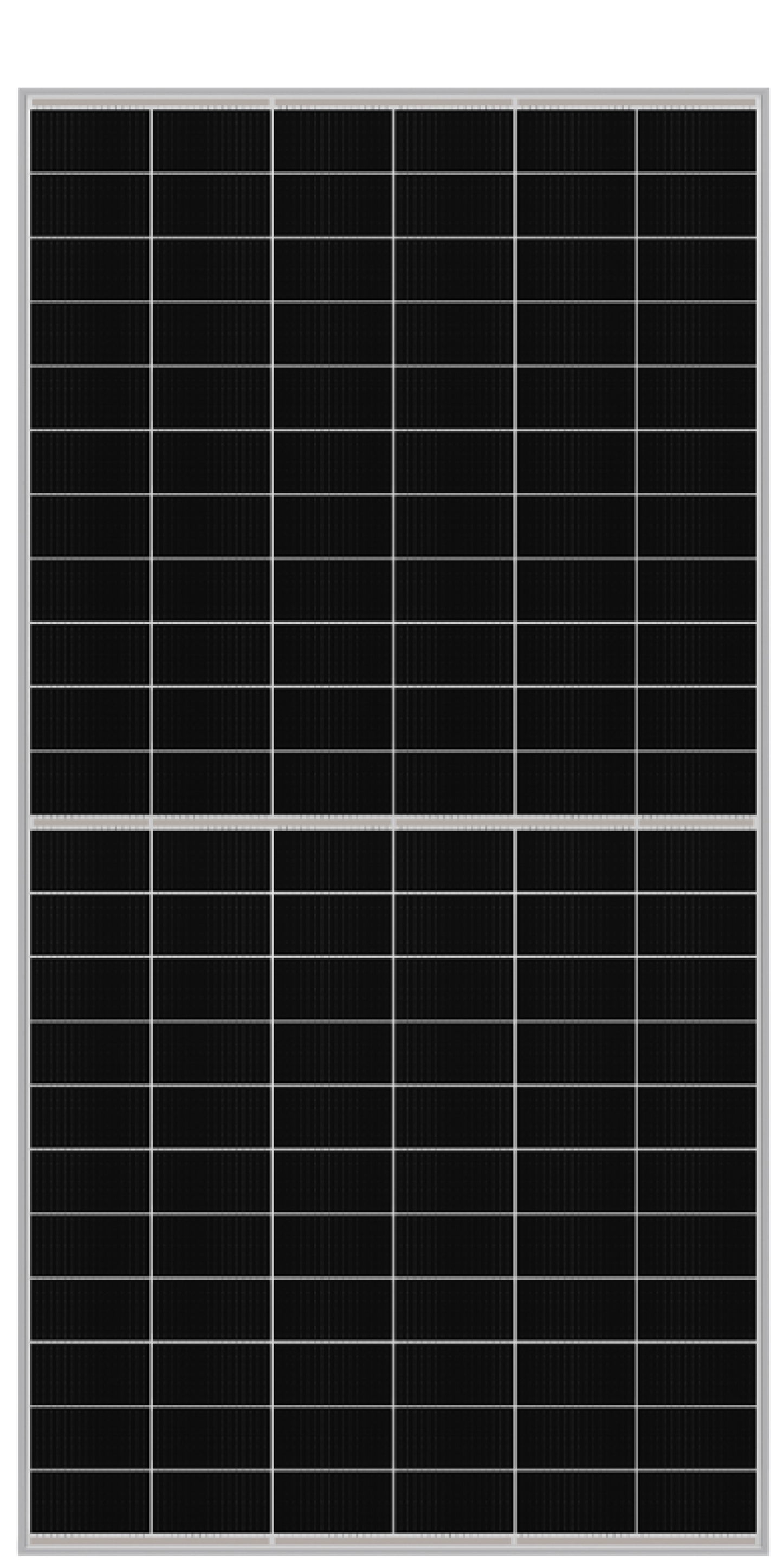

-TOP(Bi)HiKu6 6.2-66TB 610 Watt (36 modules)

TOPCon n-type
Glass-Glass bifacial module with Silver Frame
2.0 + 2.0 mm glass-glass
182 Pro cells
2382 x 1134 x 30 mm (32.8 kg)
1400 mm cable length
1500V IEC (ed. 2021-2023)

12 years Product Warranty
30 years Power Performance Warranty

*Displayed prices include the recycling obligation of 0,005 zloty/Wp

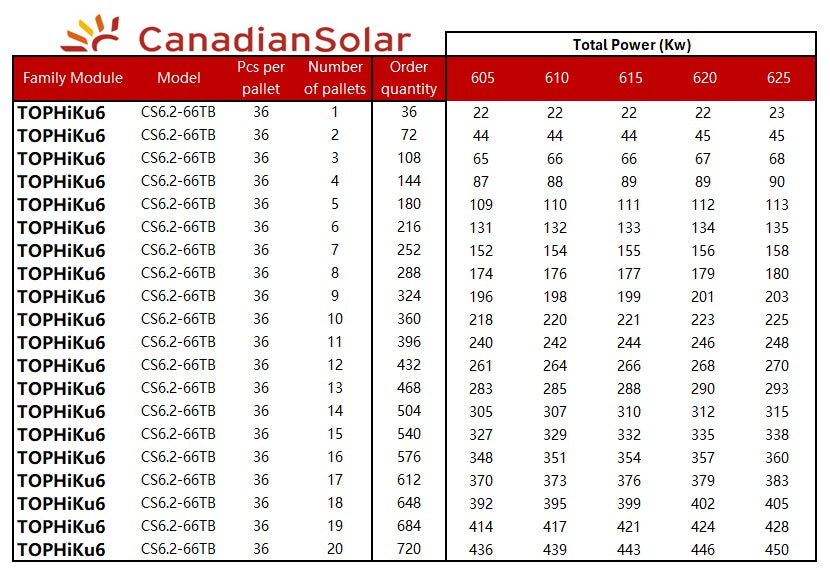

36 modules/pallet

Additional documents:

Datasheet (EN)

Datasheet (PL)

Installation Manual (EN)

Installation Manual (PL)

Warranty (EN)

Warranty (PL)

Certificates
